RTPS80-05-01 Series, Ruggedized Military 80W (COTS) Power Supply
- Three 80W Models:
- 5V @ 16A
- 12V @ 6.7A
- 24V @ 3.3A
- 18V output @+48V option available (contact factory for more information)
- Designed to meet Meet FCC Part 15 Class B, CISPR22.2 Class A
- Rugged metal enclosure with potting offers improved shock and vibration performance and resistance to environmental factors
- Universal input 100~240V +/- 10%
- Convection cooled
- Compact size
DB15 Connector
Waterproof/Dustproof to IP66

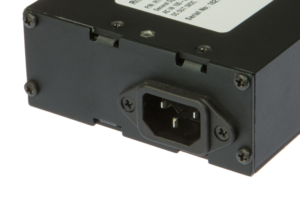

IEC60320 C14 Connector
| Input Characteristics | |
|---|---|
| Voltage and Frequency | 90 ~ 264Vac, 47 ~ 63Hz |
| AC Current | 1A Max. at any Input voltage range at Max. load condition |
| Inrush Current (Typ.) | less than 40A at 120V ~ 240V input (Optional low inrush model: less than 15A at 110V input and less than 30A at 220V input |
| Leakage Current | <0.75mA/240Vac @60Hz |
| Output Characteristics | Part #: RTPS 80-05-01 | Part #: RTPS 80-12-01 | Part #:RTPS 80-24-01 |
|---|---|---|---|
| Output Voltage | 5V | 12V | 24V |
| Current (A) Minimum | 0A | 0A | 0A |
| Current (A) Maximum | 16A | 6.7A | 3.3A |
| Voltage Initial Setting | +/- 1% | +/- 1% | +/- 1% |
| Combined Load/line Regulation | Output maximum full rated o/p, CURRENT regulation +/-5% | ||
| Ripple and Noise | The ripple and noise is as follows when measured with a maximum bandwidth of 20MHz and 4.7uF/50V capacitor connected at output wire shall be less that 1% P-P | ||
| Efficiency | 81% minimum at 120~240Vac at maximum load | ||
| Hold Up Time | 8mS minimum | ||
| Protection Specifications | |
|---|---|
| Over Current | Output limited less than 120% max rated output current |
| Short Circuit | Output shall shut down and automatic restart |
| Over Voltage | Power supply shall not exceed 115% ~130% of rated output voltage |
| Over Temperature | Power supply shall reduce the output voltage and current at the out of spec high temperature condition and maintain the hot spot temperature below components rating |
| Environment Specifications | |
|---|---|
| Operating Temperature | Nominal -40 to +60°C ambient at full load Linearly de-rate output power to 70% up to 80°C |
| Operating Humidity | 5% to 95%, non-condensing |
| Cooling Requirement | Natural air convection cooling |
| Storage Temp., Humidity | -40 ~ +85°C 10 ~95% R.H |
| Altitude | 15,000 ft minimum operation and -500ft to 40,000 ft storage |
| Vibration | Frequency 5 to 50 Hz, acceleration ±7.35 M/(S*S), direction X,Y and Z Axis |
| Safety And EMC | |
|---|---|
| Safety Standards | Compliant to UL1310 with class 2 output and UL60950 requirement |
| EMI Conduction & Radiation | Meets FCC Part 15 Class B, CISPR22.2 Class A |
| Reliability | Mean Time Between Failure (MTBF) >100,000 hours, MIL-HDBK217E at 40 degrees C ambient. |
| EMS Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, heavy industry level (surge 4KV), criteria A |
| Isolation |
|
| Burn-In | 48 hours at 100% rated load prior to final testing |
| MTBF | 200K hrs minimum at 25C, convection cooled, per part calculation method |
| Warranty | 3 Years |
| Mechanical Specifications | |
|---|---|
| Physical Construction | Rugged metal enclosure with potting offers improved shock and vibration performance and resistance to environmental factors |
| Dimensions | 5.91(L) X 3.94(W) X 1.61(H) INCH |
| AC Input | IEC60320 C14 type power entry connector that meets IP52 minimum. |
| DC Output Cable | 36” +/-2″, with D-Sub 15 pin connector |
| Output Pin Specifications | |||
|---|---|---|---|
| Pin 1 | Shell, Chassis Ground | Pin 9 | +5Vdc Return |
| Pin 2 | +5Vdc | Pin 10 | +5Vdc |
| Pin 3 | +5Vdc | Pin 11 | +5Vdc |
| Pin 4 | +5Vdc | Pin 12 | +5Vdc |
| Pin 5 | +5Vdc | Pin 13 | +5Vdc Return |
| Pin 6 | +5Vdc Return | Pin 14 | +5Vdc Return |
| Pin 7 | +5Vdc Return | Pin 15 | +5Vdc Return |
| Pin 8 | +5Vdc Return |
